EVH Striped Series SHAPES Electric Guitar - White and Black

EVH Striped Series SHAPES Electric Guitar in White and Black

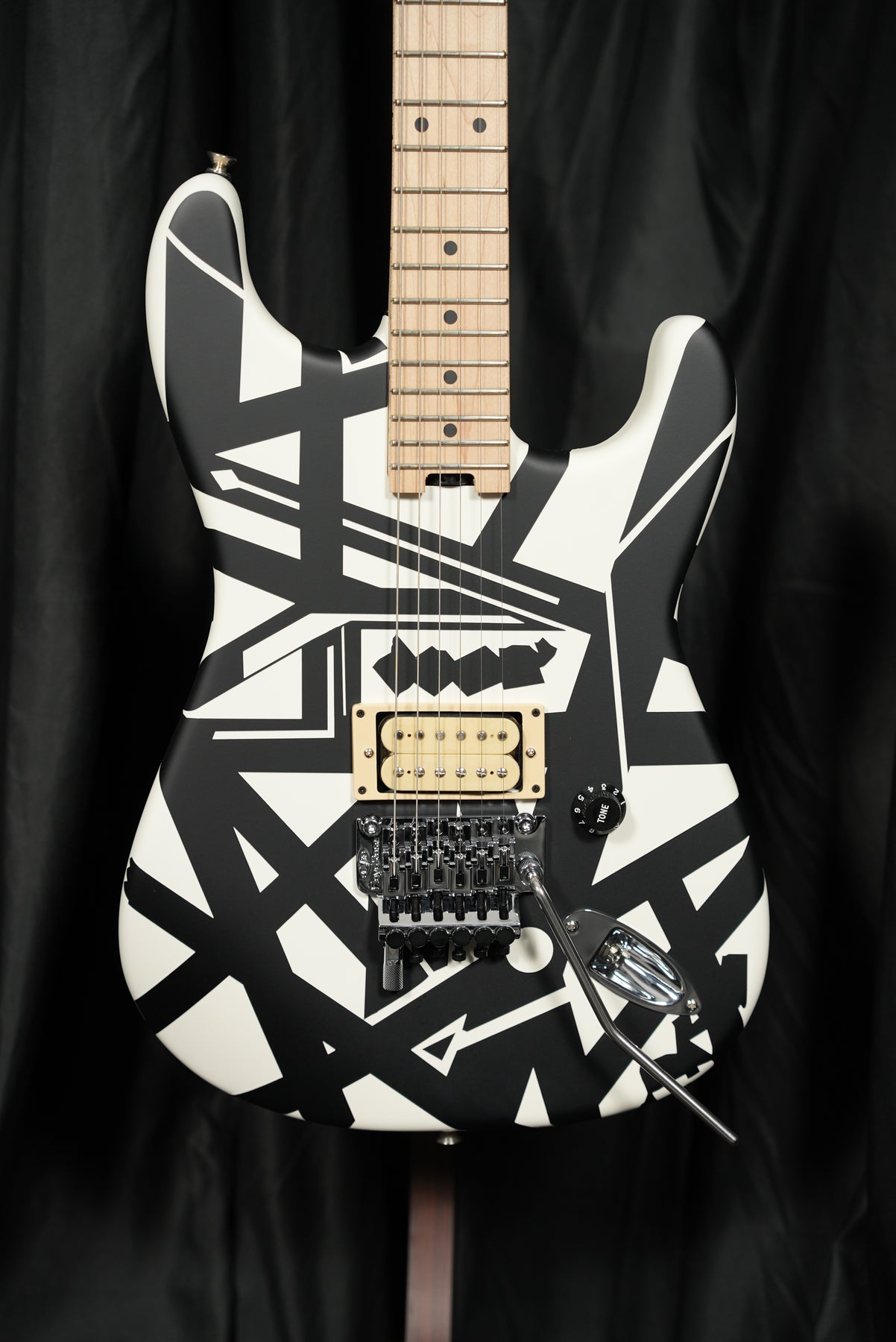

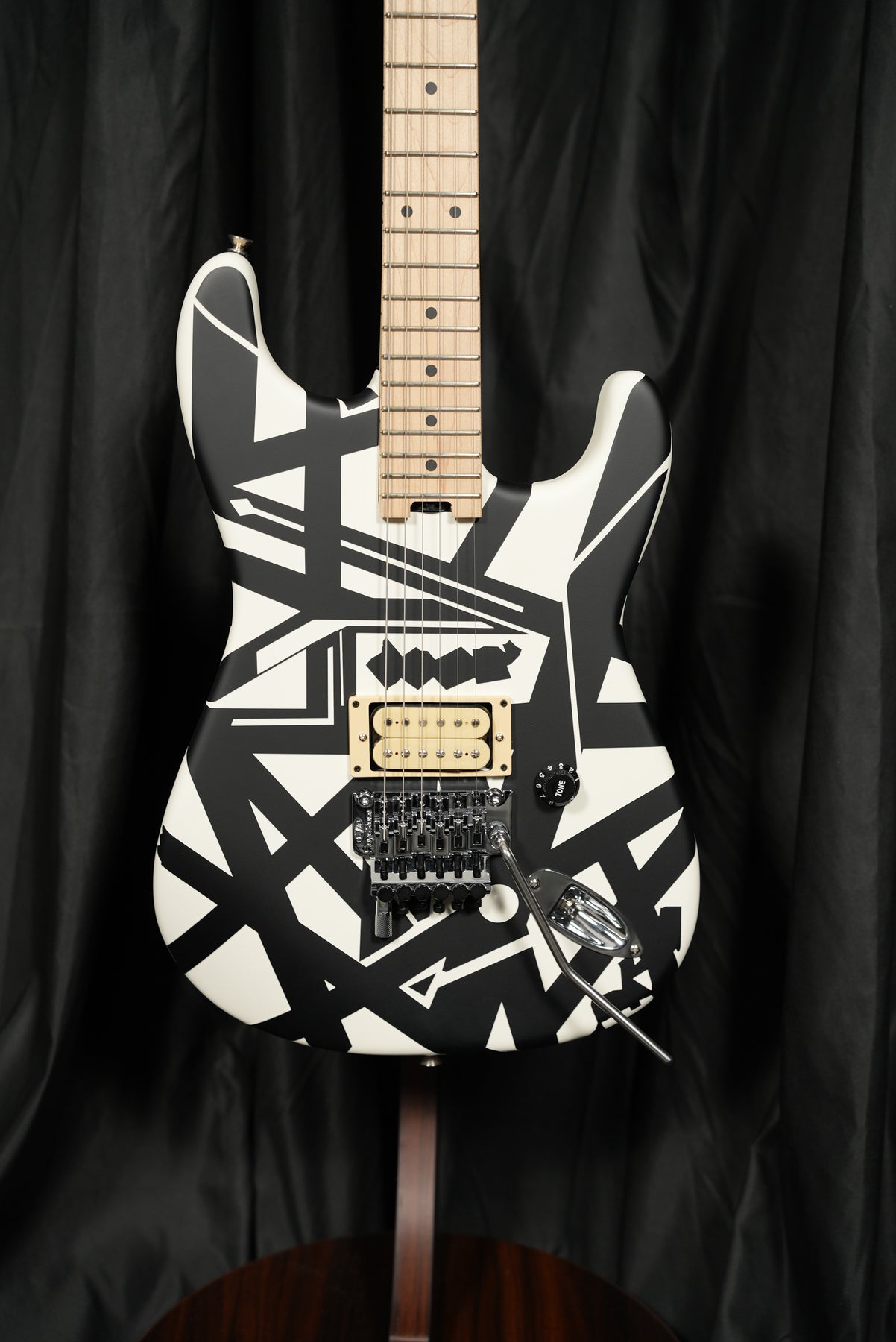

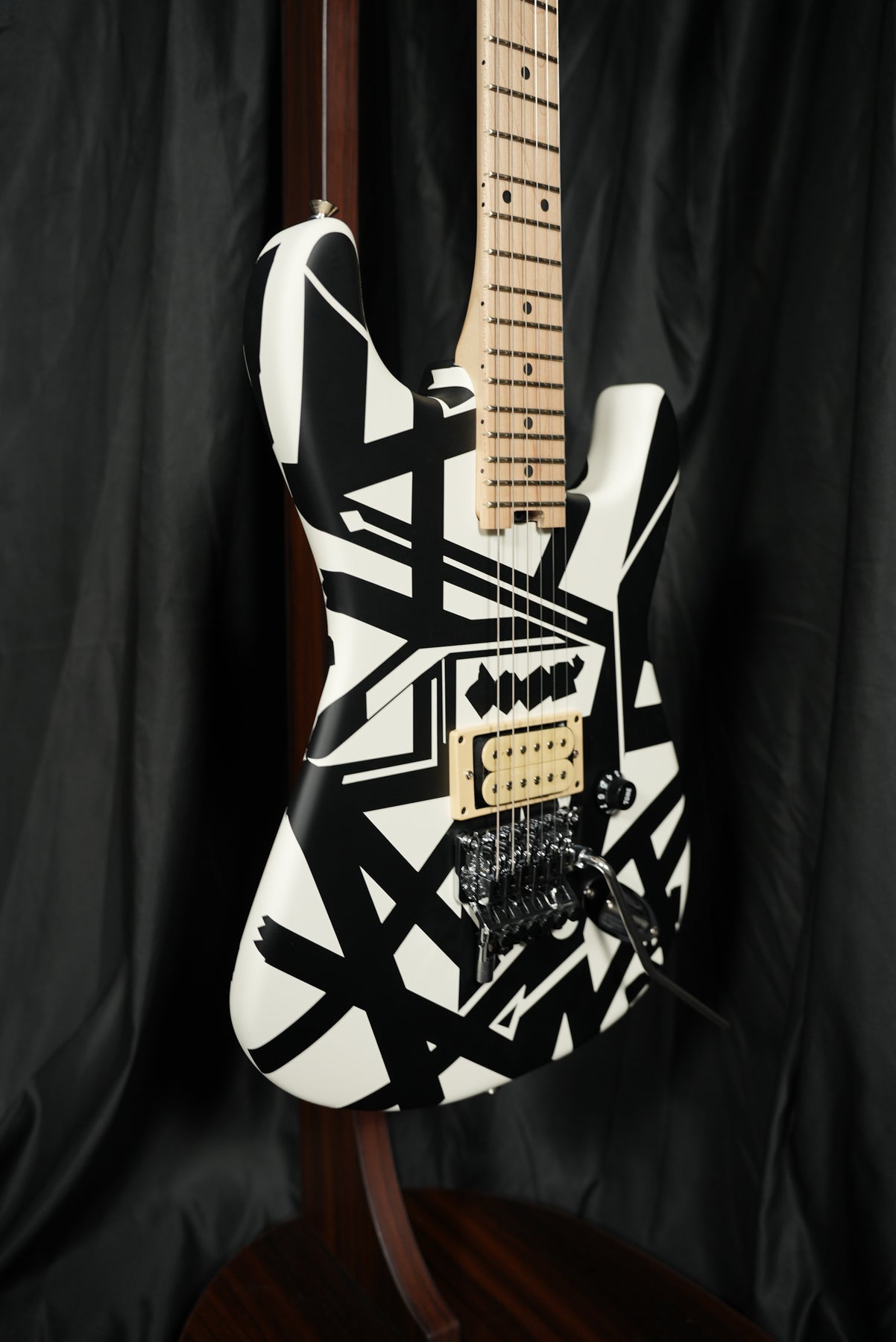

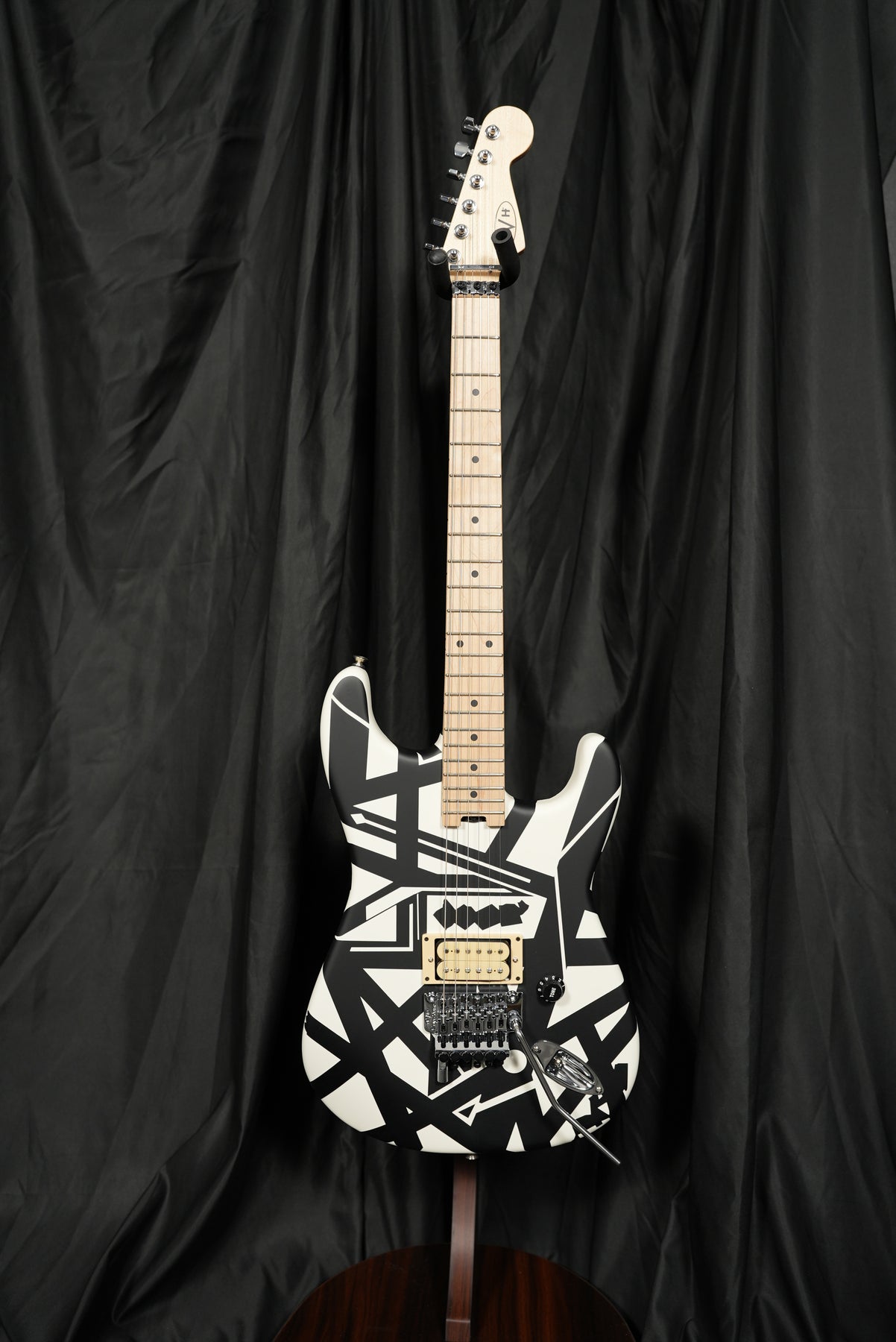

The EVH Striped Series SHAPES electric guitar pairs a bold White and Black painted graphic with a mahogany body, a direct-mount EVH Wolfgang bridge humbucker and a Floyd Rose locking tremolo with EVH D-Tuna. Inspired by the instrument Eddie Van Halen played on the 1981 Fair Warning Tour, this six-string brings distinctive EVH styling to a straightforward, performance-focused design.

Wolfgang Humbucker and Simple Volume Control

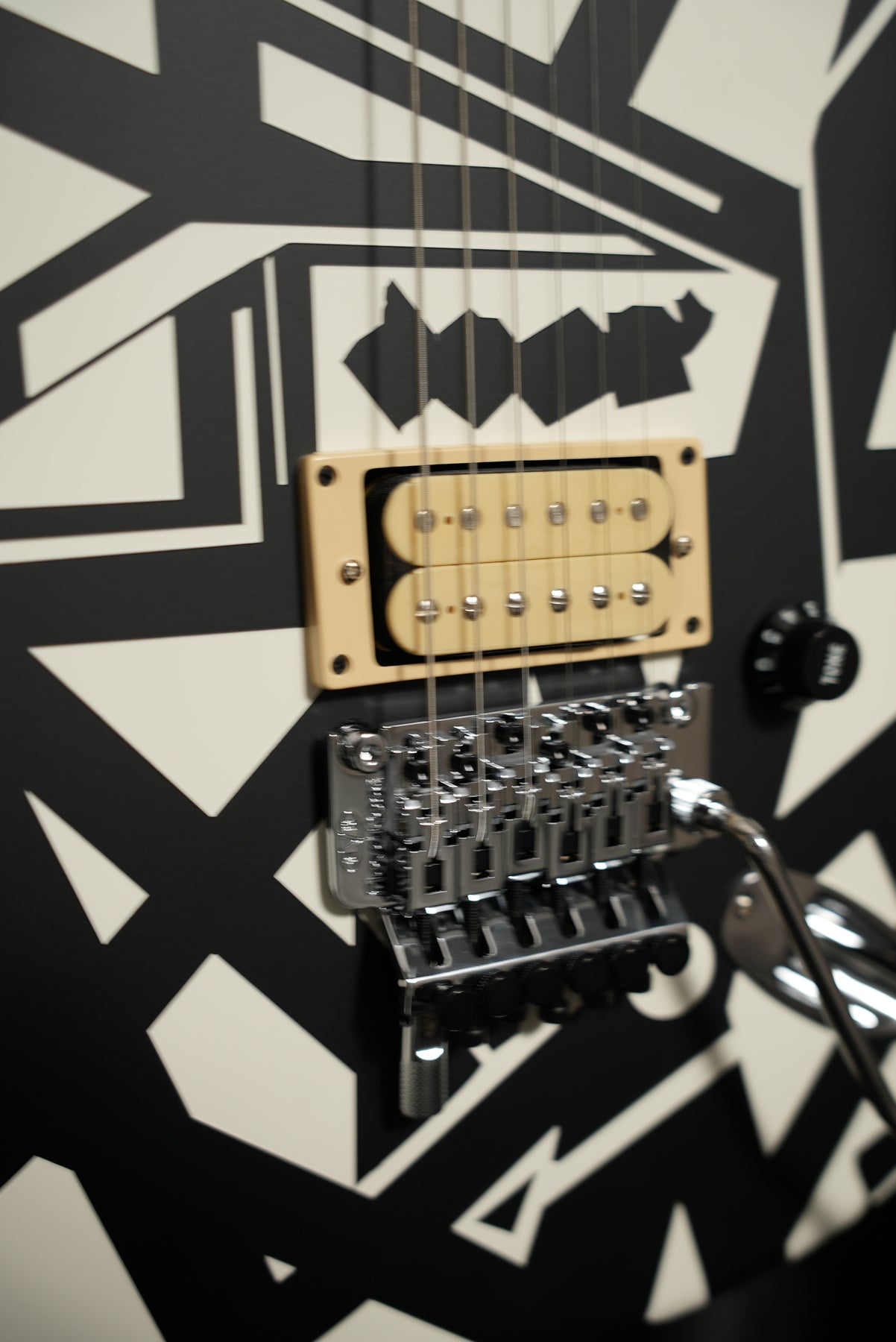

A single EVH Wolfgang humbucking bridge pickup delivers focused, harmonically rich output for rock rhythm and lead playing. The master volume uses a 500K EVH Bourns low-friction pot, keeping the control layout simple and easy to reach as you move between riffs and solos.

Compound-Radius Maple Fingerboard

The bolt-on quartersawn maple neck features graphite reinforcement, a scarf joint and the EVH Modified C backshape. Its 12–16-inch compound-radius maple fingerboard transitions from a rounder feel near the nut to a flatter playing surface higher up the neck, accommodating chord work, bends and high-register leads. Twenty-two jumbo frets and a heel-mount truss rod adjustment wheel round out the player-focused neck design.

Floyd Rose Tremolo with EVH D-Tuna

The EVH Floyd Rose 1000 Series double-locking tremolo supports expressive vibrato and dive bombs, while the R3 locking nut secures the strings at the headstock. An EVH D-Tuna provides a convenient way to switch the low string between E and drop D. Chrome hardware and oversized strap buttons complete the instrument.

Specifications

• Model: EVH Striped Series SHAPES
• Color and graphic: White and Black SHAPES painted graphic
• Body: Mahogany with satin urethane finish
• Neck: One-piece bolt-on quartersawn maple with graphite reinforcement and scarf joint
• Neck profile: EVH Modified C
• Fingerboard: Maple, 12–16-inch compound radius
• Frets: 22 jumbo
• Inlays: Black dots
• Scale length: 25.5 inches

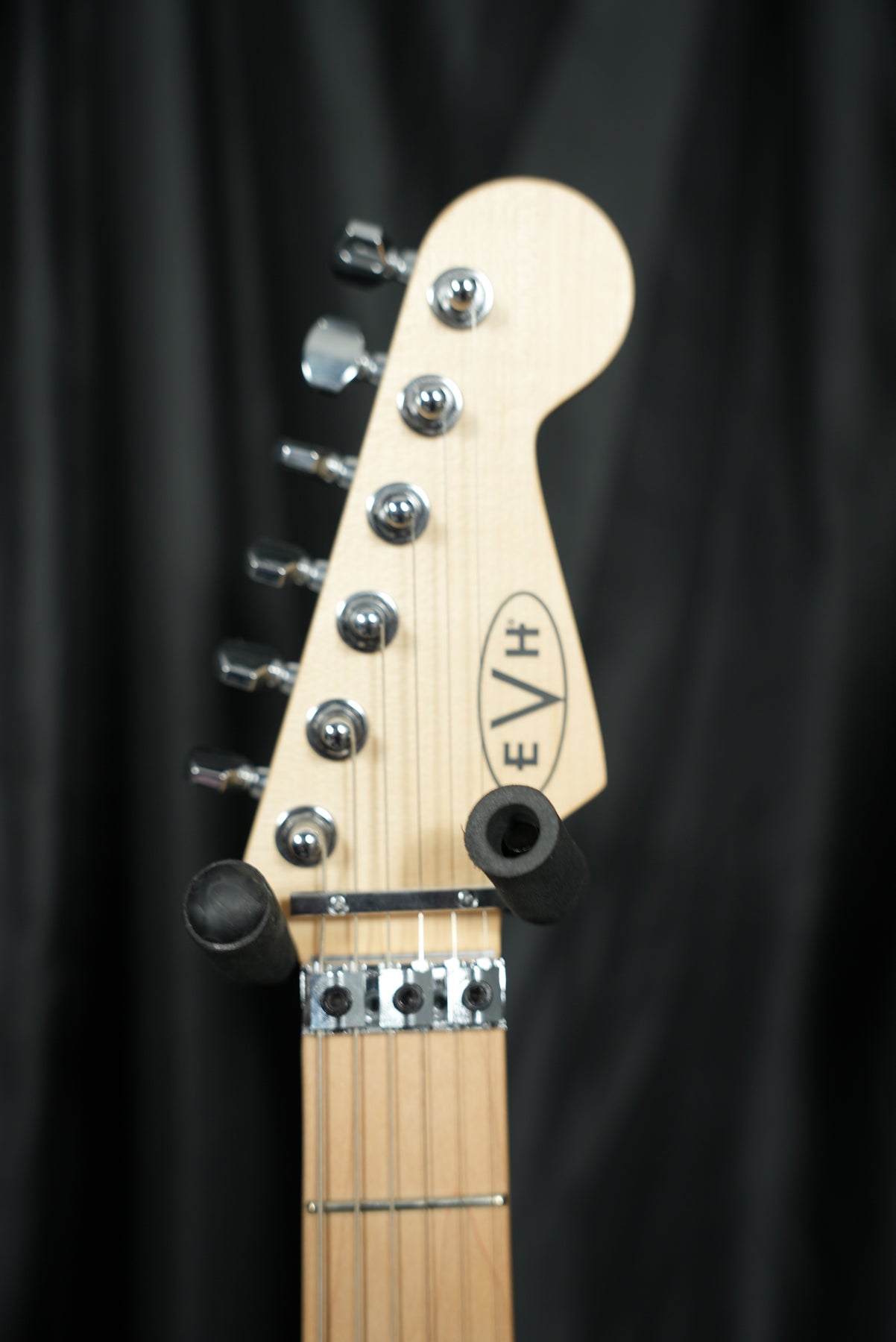

• Nut: Floyd Rose R3 locking nut, 1.6875 inches (42.86 mm)
• Truss rod adjustment: Heel-mount wheel

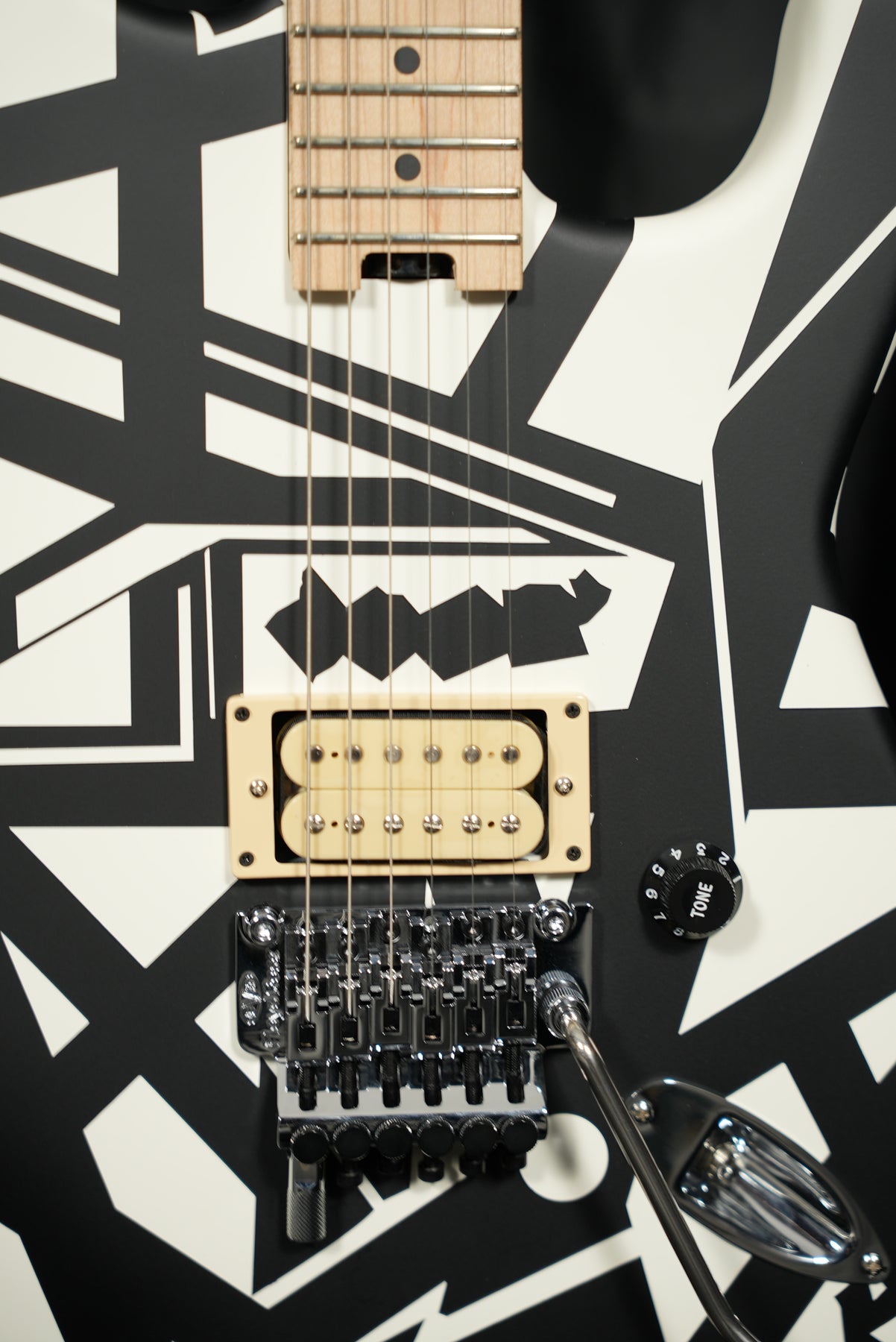

• Bridge pickup: Direct-mount EVH Wolfgang humbucker
• Controls: Single master volume with 500K EVH Bourns low-friction pot
• Bridge: EVH Floyd Rose 1000 Series double-locking tremolo with EVH D-Tuna
• Tuning machines: EVH-branded
• Hardware: Chrome; oversized strap buttons
• Strings: EVH nickel-plated steel, .009–.042
• Orientation: Right-handed
• Number of strings: 6
• Included: EVH Wolfgang/Striped Series gig bag (P/N 022-7742-100)
